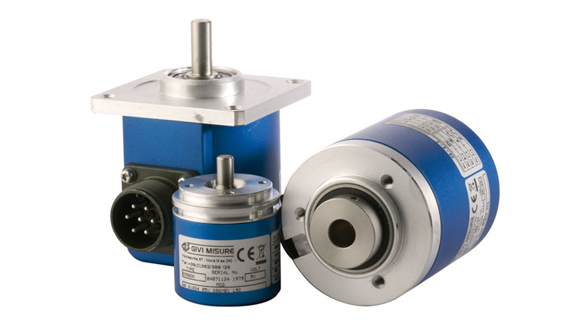

EN58 - Incremental encoders Ø 58 mm
A robust and compact structure combines versatility in use to such a wide range of features that any application needs can be met with satisfactory solutions..

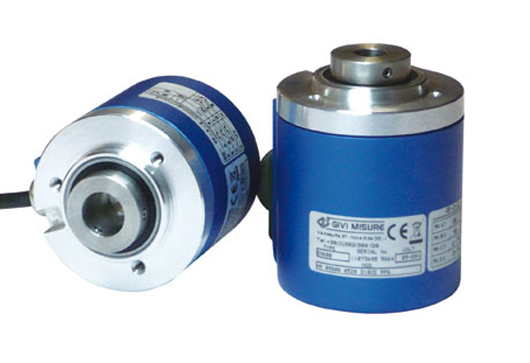

EN58 SC   Semi-hollow shaft
Available pulses 5 � 64000 ppr
Max. rotating speed moment. 12000 rpm
permanent 8000 rpm
Centering � 36 mm
Fixing no. 3 screws M4 at 120�
Shaft � mm/td> 6 - 8 - 9,52 - 10 - 12 - 14 - 15
others on request
Power supply 5 V � 5% or 5 � 28 V � 5%
Protection class IP 65
Output LINE DRIVER / PUSH-PULL
OPEN COLLECTOR
Max. frequency 300 kHz
Electrical protections inversion of polarity and short circuit

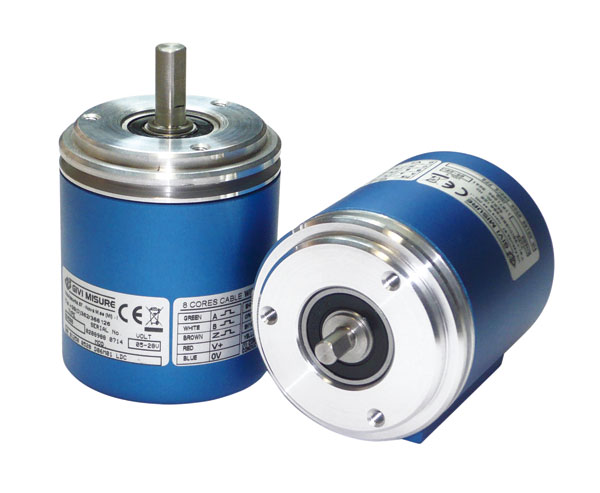

EN500   Centering � 50 mm
Available pulses 5 � 64000 ppr
Max. rotating speed moment. 12000 rpm
permanent 8000 rpm
Centering � 50 mm
Fixing no. 3 screws M4 at 120�
Shaft � mm/td> 6x10 - 8x20 - 9,52x20 - 10x20
others on request
Power supply 5 V � 5% or 5 � 28 V � 5%
Protection class IP 65 or IP 67 (optional)
Output LINE DRIVER / PUSH-PULL
OPEN COLLECTOR
Max. frequency 300 kHz
Electrical protections inversion of polarity and short circuit

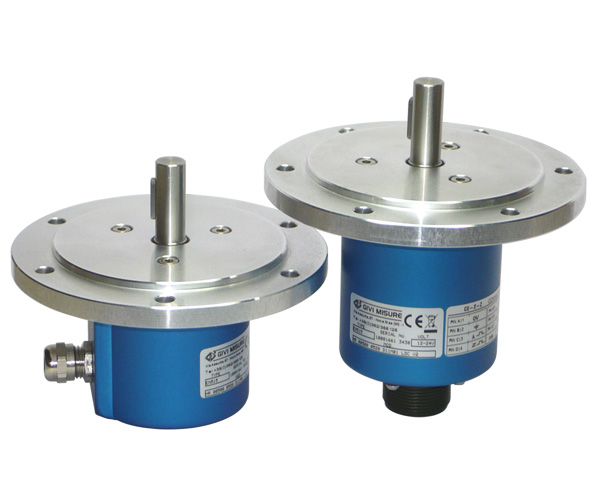

EN515   Flange � 115 mm
Available pulses 5 � 64000 ppr
Max. rotating speed moment. 12000 rpm
permanent 8000 rpm
Centering � 85 mm
Fixing no. 6 holes � 6.6 mm
Shaft � mm 11x30
Power supply 5 V � 5% or 5 � 28 V � 5%
Protection class IP 65 or IP 67 (optional)
Output LINE DRIVER / PUSH-PULL
OPEN COLLECTOR
Max. frequency 300 kHz
Electrical protections inversion of polarity and short circuit

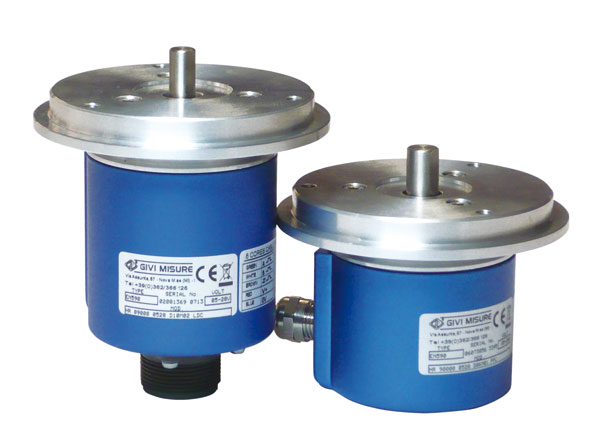

EN590   Flangia � 90 mm
Available pulses 5 � 64000 ppr
Max. rotating speed moment. 12000 rpm
permanent 8000 rpm
Centering � 80 mm
Fixing no. 3 screws M5 at 120�
Shaft � mm/td> 8x20 - 9,52x20 - 10x20
others on request
Power supply 5 V � 5% or 5 � 28 V � 5%
Protection class IP 65 or IP 67 (optional)
Output LINE DRIVER / PUSH-PULL
OPEN COLLECTOR
Max. frequency 300 kHz
Electrical protections inversion of polarity and short circuit

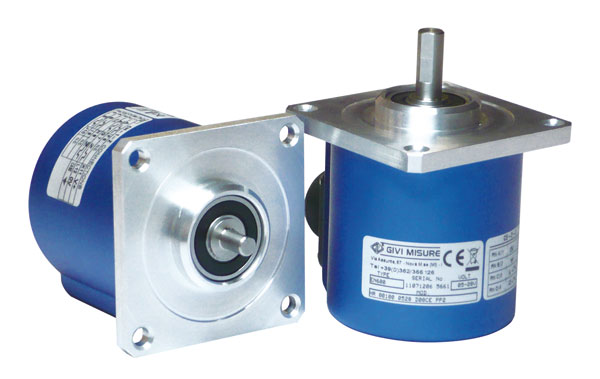

EN600   Centering � 31,75 mm
Available pulses 5 � 64000 ppr
Max. rotating speed moment. 12000 rpm
permanent 8000 rpm
Centering � 31,75 mm
Fixing no. 4 holes � 5,5 mm
Shaft � mm/td> 6x10 - 8x20 - 9,52x20 - 10x20
others on request
Power supply 5 V � 5% or 5 � 28 V � 5%
Protection class IP 65 or IP 67 (optional)
Output LINE DRIVER / PUSH-PULL
OPEN COLLECTOR
Max. frequency 300 kHz
Electrical protections inversion of polarity and short circuit

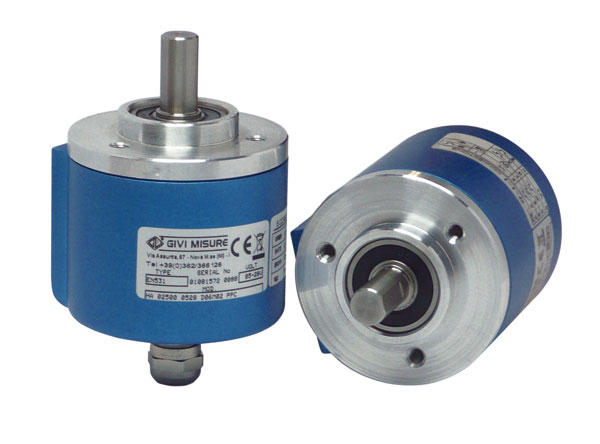

EN531   Centering � 31,75 mm
Available pulses 5 � 64000 ppr
Max. rotating speed moment. 12000 rpm
permanent 8000 rpm
Centering � 31,75 mm
Fixing no. 3 screws M5 at 120�
Shaft � mm/td> 6x10 - 8x20 - 9,52x20 - 10x20
others on request
Power supply 5 V � 5% or 5 � 28 V � 5%
Protection class IP 65 or IP 67 (optional)
Output LINE DRIVER / PUSH-PULL
OPEN COLLECTOR
Max. frequency 300 kHz
Electrical protections inversion of polarity and short circuit

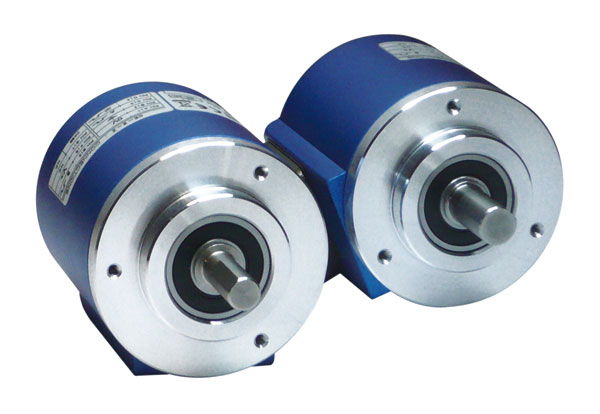

EN536   Centering � 36 mm
Available pulses 5 � 64000 ppr
Max. rotating speed moment. 12000 rpm
permanent 8000 rpm
Centering � 36 mm
Fixing no. 3 screws M3 at 120�
Shaft � mm/td> 6x10 - 8x20 - 9,52x20 - 10x20
others on request
Power supply 5 V � 5% or 5 � 28 V � 5%
Protection class IP 65 or IP 67 (optional)
Output LINE DRIVER / PUSH-PULL
OPEN COLLECTOR
Max. frequency 300 kHz
Electrical protections inversion of polarity and short circuit

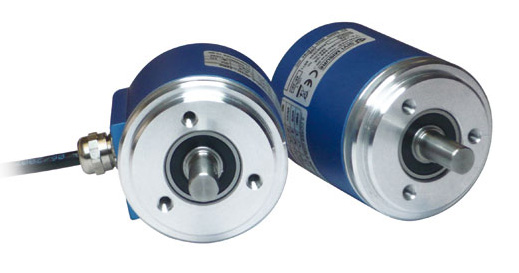

EN5036   Centering � 50 mm
Available pulses 5 � 64000 ppr
Max. rotating speed moment. 12000 rpm
permanent 8000 rpm
Centering � 50 mm
Fixing no. 3 screws M5 at 120�
Shaft � mm/td> 6x10 - 8x20 - 9,52x20 - 10x20
others on request
Power supply 5 V � 5% or 5 � 28 V � 5%
Protection class IP 65 or IP 67 (optional)
Output LINE DRIVER / PUSH-PULL
OPEN COLLECTOR
Max. frequency 300 kHz
Electrical protections inversion of polarity and short circuit

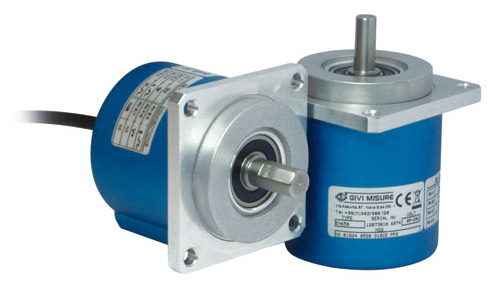

EN650   Centering � 50 mm
Available pulses 5 � 64000 ppr
Max. rotating speed moment. 12000 rpm
permanent 8000 rpm
Centering � 50 mm
Fixing no. 4 holes � 5,5 mm
Shaft � mm/td> 6x10 - 8x20 - 9,52x20 - 10x20
others on request
Power supply 5 V � 5% or 5 � 28 V � 5%
Protection class IP 65 or IP 67 (optional)
Output LINE DRIVER / PUSH-PULL
OPEN COLLECTOR
Max. frequency 300 kHz
Electrical protections inversion of polarity and short circuit
