Encoder's and Dro Scales | ROTARY ENCODERS

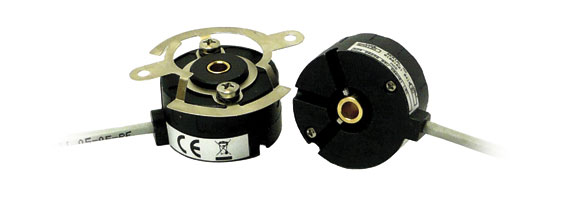

EN413 - Incremental encoder Ø 41.3 mm

Optical rotary encoder of small overall dimensions.
Bi-directional signals with zero pulse.
Up to 500 pulses per revolution.
High rotational accuracy.
Flange and cover made of zamak.
Cable output in radial position.

EN413 Incremental encoder Ø 41.3 mm
Available pulses	50 ÷ 500 ppr
Max. rotating speed	6000 rpm
Centering Ø	20 mm
Fixing	no. 2 screws M4
Hollow shaft Ø mm	6
Cable output	radial
Power supply	5 V ± 5% or 12 ÷ 24 V ± 5%
Protection class	IP 40
Output	LINE DRIVER / PUSH-PULL
Max. frequency	50 kHz
